Pouch cell semi-automatic cutting and shaping machine
May 4, 2023
Follow me on:

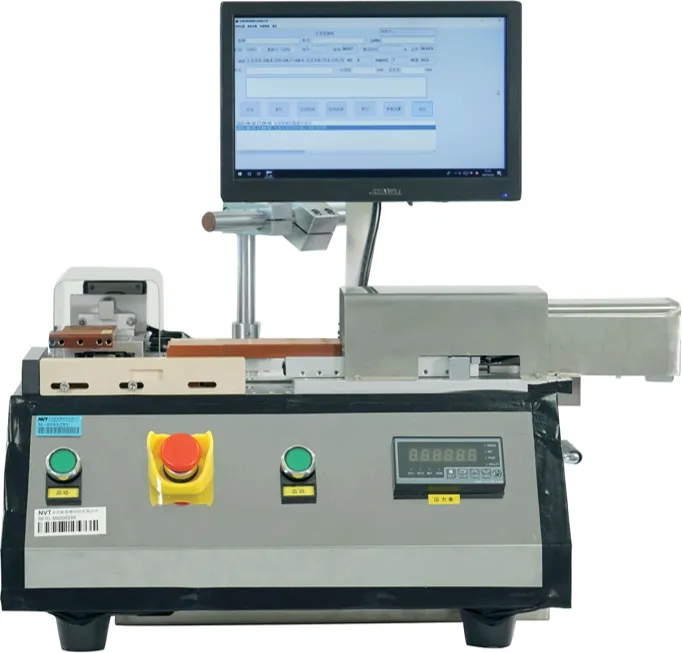

Application: The equipment uses semi-automatically to complete the OCV, electrode cutting and shaping of the cell. This equipment is a four-position rotary table: manual loading position, OCV detection and pre-shaping position, pole cutting position, pole shaping position; the mechanical part is realized by the use of servo motors and SMC cylinders. Convergence between various positions. The control part is composed of the HMI, a variety of sensors and PLC, from the drive mechanical part to achieve reliable sequential action, so the quality of the product has been greatly improved, to meet the quality requirements of the product, the brief information is as follows:
Parameters:
- Size: 800mm × 780mm × 1600mm
- Efficiency: ≥15ppm
- Scrap rate caused by machine: less than 0.01%
- Defect rate caused by machine: less than 0.5%
- Failure rate: less than 2%
- Accuracy: ±0.02mm
- Compression range: 1000g±40g≤G≤2000g±100g
- Operation: manual operation of load/unload cell
- Control mode: manual
- Number of operators: 1 operator
